1、信号电源解决方案   Solutions for signal power supply

(1)信号电源系统-普铁解决方案 Signal power supply system




【方案介绍  Solution introduction】

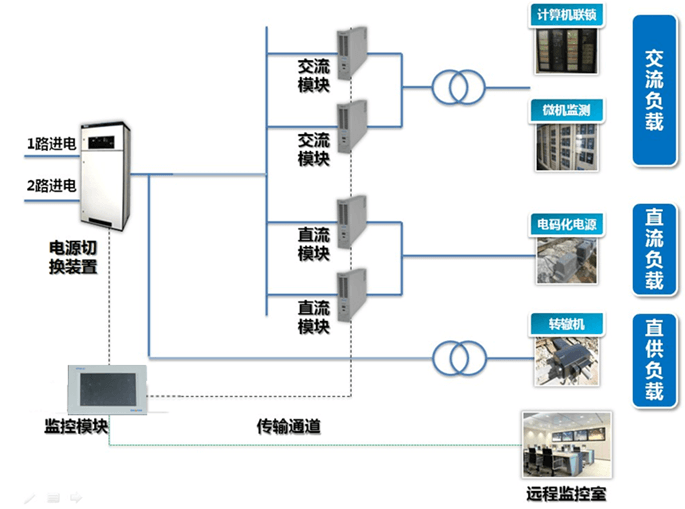

两路市电输入经“Y”型切换后输出一路,通过DSP数字控制技术,实现交流模块并联工作,所有模块均分负载工作,模块切换零中断。大大提高了信号电源系统的可靠性和可用性。

After "Y" type switching, two lines electricity input outputs one line electricity. Through DSP digital control technology, paralleling of AC modules, all modules load sharing and zero interruption of modules switching are realized, and the reliability and availability of the signal power system are greatly improved.

线级的集中监控和市局级的集中监控。为客户提供多种选择。

Line-level centralized monitoring and municipal-level centralized monitoring; providing customers with multiple choices.

(2)信号电源系统-客专解决方案   Signal power supply system-Passenger dedicated line solution




【方案介绍  Solution introduction】

 双UPS并机系统,根据不同站点需求,配置不同后备时间的蓄电池组。线级的集中监控和市局级的集中监控。为客户提供多种选择。

Dual-UPS paralleling system; according to the needs of different sites, configure storage battery packs with different backup time. Line-level centralized monitoring and municipal-level centralized monitoring; providing customers with multiple choices.

(3)信号电源系统-地铁、城轨解决方案 Signal power supply system-subway and urban rail transit solution





【方案介绍  Solution introduction】

单机UPS方案,根据不同站点需求,配置不同后备时间的蓄电池组。

Single UPS; according to the needs of different sites, configure storage battery packs with different backup time.

(4)信号电源系统-双UPS双母线解决方案   Signal power supply system-dual-UPS dual-bus solution






【方案介绍  Solution introduction】

我司可提供以下两种双母线解决方案:

Our company can provide the following two kinds of dual-bus solutions:

1、采用两台交流UPS配置输出双母线方案。此方案目前业界更高可靠性方案。

Dual-AC UPS configuring outputdual-bus solution. This solution currently has higher reliability in the industry.

2、采用两组HVDC电源模块配置输出双母线方案(即一体化不间断供电系统方案),该系统简化了系统变换层级,也避免了交流UPS因整流器损坏使得电池无法正常使用的问题。

Dual-HVDC power module configuring outputdual-bus solution (i.e. integrated uninterruptible power supply system solution);this system simplifies system transformation level and also avoids the problem that batteries could not work properly due to the damage of AC UPS rectifier.

2、电力操作电源系统方案  Solution for electric operation power supply system





【方案介绍  Solution introduction】

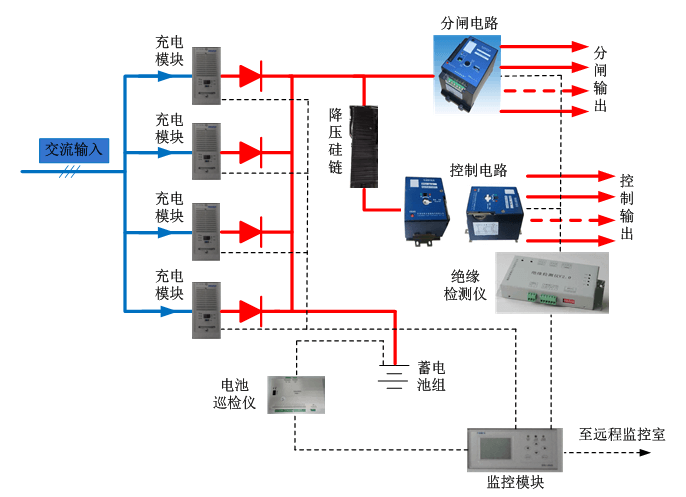

AC I路和AC II路采用一主一备的运行方式,一路异常时,另一路自动投入运行(也可手动切换)。充电模块进行AC/DC整流后的DC电源一方面给电池充电,另一方面给负载供电。直流输出异常时,由蓄电池为负载供电。

AC line I and AC line II respectively are master and standby operating circuits; when one is abnormal, the other one will be automatically put into operation (also they can be manually switched). After AC/DC rectification of charging module, DC power supply will, on one hand, charge battery; one the other hand, it will provide power for load. When DC output is abnormal, the battery will supply power to the load.

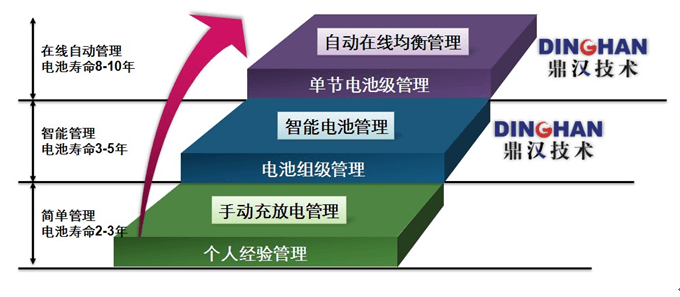

【蓄电池在线均衡管理方案   Online balanced management of batteries】

蓄电池自动在线均衡,能够自动在线对每一节电池进行检测和充放电管理,利用先进的电池管理技术(硬件和软件相结合的电池管理),使整组电池中的每一节的单体电池都在良好的的状态下工作,且整组电池具有较好的一致性,极大的延长了电池的使用寿命(可达7-8年)。

Through battery automatic on-line balancing, detection and charging and discharging management can be made on line for each battery; through the advanced battery management technology (a battery management technology through combining hardware with software), each battery cell in the whole battery pack can work in good condition and the whole pack of batteries have better consistency, so that the service life of the batteries are greatly extended (up to 7-8 years).

【全远动系统方案  Full telecontrol system solution】



交直流屏所有进、出线开关均能在远方控制中心实现对现场开关的分合闸控制。需增加控制单元,本地执行机构。在需要无人值守的站点是非常有必要的。

All incoming and outgoing switches of AC and DC screens can realize on-off control for site switches in the remote control center; it is required to increase control unit and local actuator, which are very necessary for sites needing unattended operation.

3.屏蔽门电源系统方案 Solution for platform screen door power supply system

屏蔽门电源系统主要分为驱动电源和控制电源,其中驱动电源主要是为DCU、门机供电;控制电源主要为PSC、控制回路、安全回路及其他一些控制信号供电。

The platform screen door power supply system is mainly divided into driving power supply and control power supply; where, the driving power supply mainly provide electricity for DCU and door mechanism; the control power supply mainly provide electricity for PSC, control circuit, safety circuit and  other control signals.




                                                                                          驱动电源

                                                                                 Driving power supply

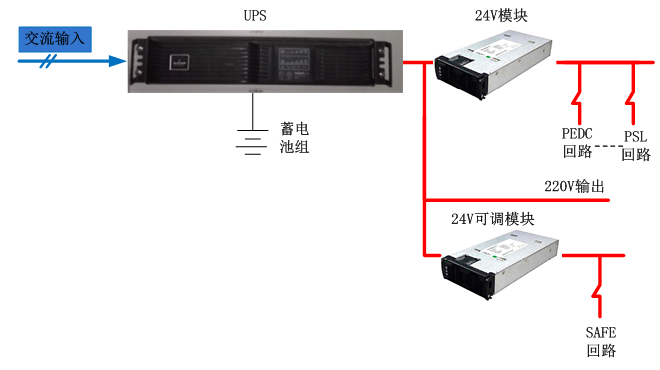

                                                                                          控制电源

                                                                                    Control power supply

【方案介绍 Solution introduction】

驱动电源和控制电源各采用一组电池作为后备;驱动电源由驱动模块、充电模块、监控系统和电池组成;控制电源由UPS、24DCV整流模块和电池组成。驱动电源充电模块(N+1)对电池充电,驱动模块(N+1)提供驱动输出,驱动模块与充电模块之间采用二极管隔离,保证电池充电稳定。 控制电源整流模块(N+1)提供24VDC及24VDC可调输出,同时由UPS输出端提供220VAC输出。 交流停电时两组电池分别对驱动部分和控制部分供电,保障系统供电正常。

The driving power supply and control power supply respectively adopt a battery pack as backup battery pack; the driving power is composed of driving module, charging module, monitoring system and battery; the control power is composed of UPS, 24DCV rectifier module and battery. The driving power supply charging module (N + 1) is used for charging the battery and its driving module (N+1) is used for providing drive output. Diode is used for isolation between the driving module and the charging module to ensure stable battery charging. Control power rectifier module (N + 1) is used to provide 24VDC and 24VDC adjustable output and the UPS output end is used to provide 220VAC output. In case of AC power failure, the two battery packs will respectively supply power for the driving part and control part to ensure the normal power supply of the system.

4、通信电源解决方案 Solution for communication power supply



【方案介绍  Solution introduction】

由供电专业提供2路交流电源,配电柜将交流电源直接配给交流负载,并提供一路交流电源给高频开关电源,高频开关电源根据直流负载后备时间的要求,配置一定容量的蓄电池组。

The two lines AC power supply is provided by power supply specialty; the power distribution cabinet directly distributes the AC power supply to the AC load and provides the high-frequency switch power supply with one line AC power supply; the high-frequency switch power supply allocates a battery pack with a certain capacity according to the requirements of the DC load backup time.

【方案应用  Solution application】

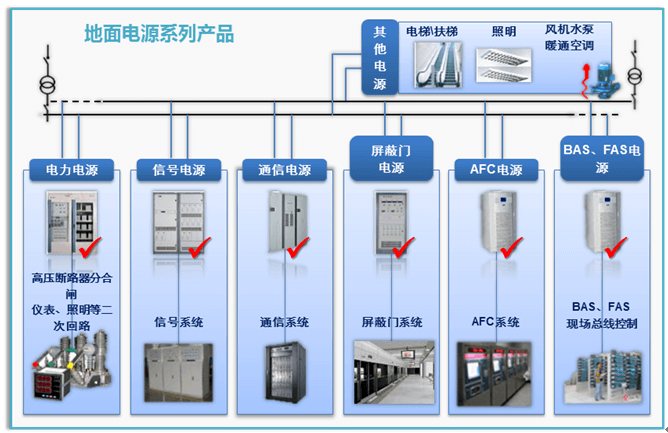

鼎汉技术研制的电力电源、信号电源、通讯电源产品在全国18个路局实现了全覆盖,在轨道交通信号电源行业里的领头地位。

The electric power supply, signal power supply and telecom power supply developed by Dinghan Technology have fully covered the 18 railway bureaus across the country, leading the way in the rail transit signal power supply industry.

5、地铁、城轨集中监控解决方案  subway and urban rail transit centralized monitoring solution


【方案介绍  Solution introduction】

 根据用户需要,可制定不同级别的监控方案,在各地铁线路的控制中心或重要监控地点配置线路级或城市级集中监控系统,有效提高对管控线路内信号电源系统运行状态的监控管理效率,集中处理故障问题降低管理成本,提高设备维护和管理水平。

According to the needs of users, different levels of monitoring schemes shall be worked out; in the control center and important monitoring sites of each subway line, line-level or city-level centralized monitoring systems shall be configured, to effectively improve the monitoring and management efficiency of the operation state of the signal power system in the control line, conduct centralized processing on failure problems to reduce management costs and improve equipment maintenance and management level.
